01 / Pitot Tube Pump Specialists · Since 2004

High-Pressure, Low-Flow Pumping Solutions

EHIK designs and manufactures pitot tube pumps and integrated skids for demanding operating conditions. We support new projects and help you replace existing pumps.

Discuss a New Project Discuss a Pump Replacement

02 / Performance & Advantages

Pitot Tube Pump Performance

High pressure at low flow, with smooth delivery and a simple pumping mechanism built for long service.

Single-Stage High Head

Reach up to 1,500 m (4,921 ft) of head with a custom single-stage design.

Smooth, Continuous Flow

Low-pulsation delivery provides a steady flow for process feed and high-pressure supply.

Simple Pumping Mechanism

A rotating chamber and a stationary pickup tube create high pressure without a stack of impeller stages.

Long Service Life, Less Maintenance

A simple hydraulic layout helps reduce wear-related servicing and keep your process running for longer.

Standard Models

Flow Rate
0.05–70 m³/h (0.22–308 US GPM)
Discharge Head
0–1,000 m (0–3,281 ft)
Operating Temperature
Up to 260°C (500°F)
Liquid Viscosity
<95 mPa·s (<95 cP)

Custom Performance Range

Single-Stage Head
0–1,500 m (0–4,921 ft)
Flow Rate
0.05–100 m³/h (0.22–440 US GPM)

03 / The EHIK advantage

Why Choose EHIK?

Fewer parts changes. Lower running costs. Pumps and skids from one supplier. Fast response and short lead times.

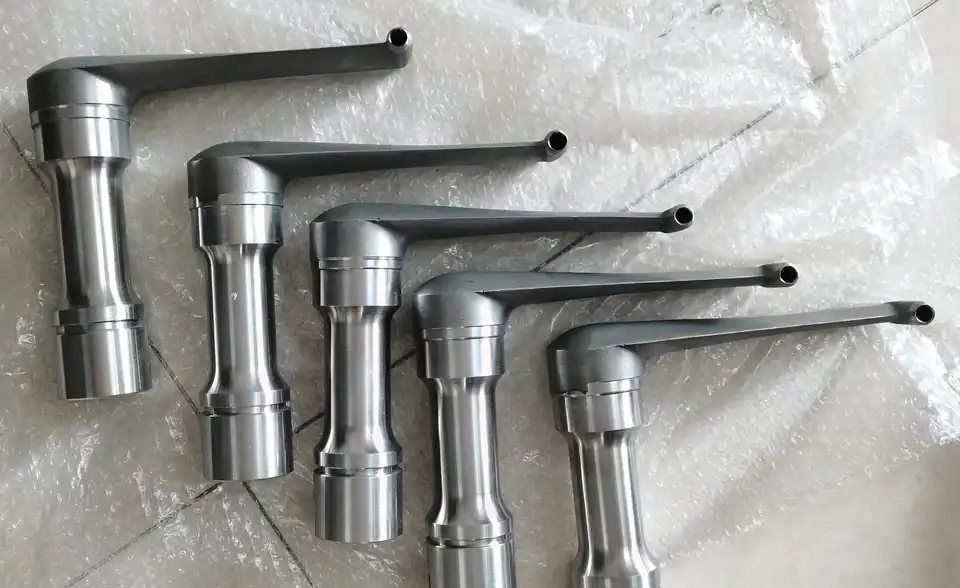

EHIK pickup tubes
01

Less Wear. Fewer Tube Changes.

In extremely abrasive conditions with high concentrations of hard particles, EHIK offers more wear-resistant solutions that can extend pickup tube replacement intervals from 1–3 weeks for standard tubes to 2–3 months. We continuously improve wear protection and connection design.

Discuss Wear-Resistant Options

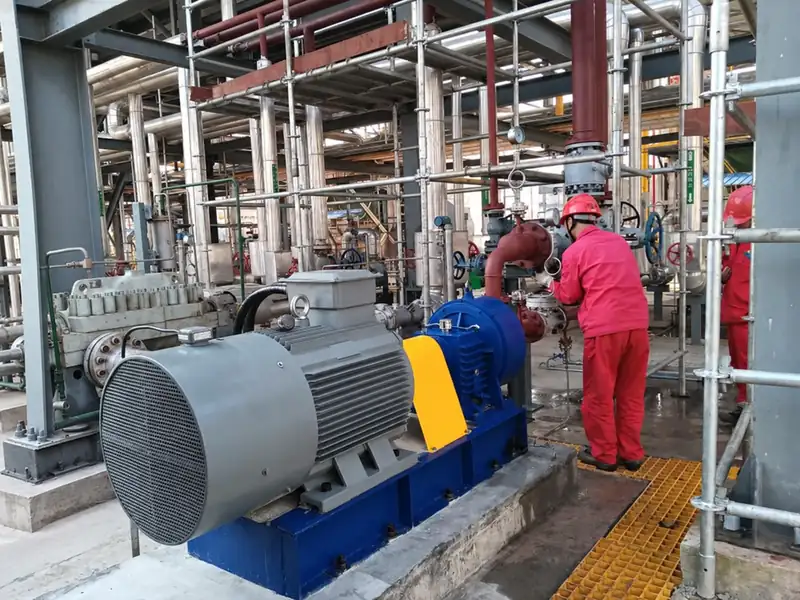

EHIK pump set installed during a multistage pump replacement project
02

Proven Pump Replacement Experience

EHIK has replaced multistage centrifugal and plunger pumps to reduce wear-related repairs. For multistage pump replacements, we also help lower power consumption while meeting the required flow and pressure.

Discuss a Pump Replacement

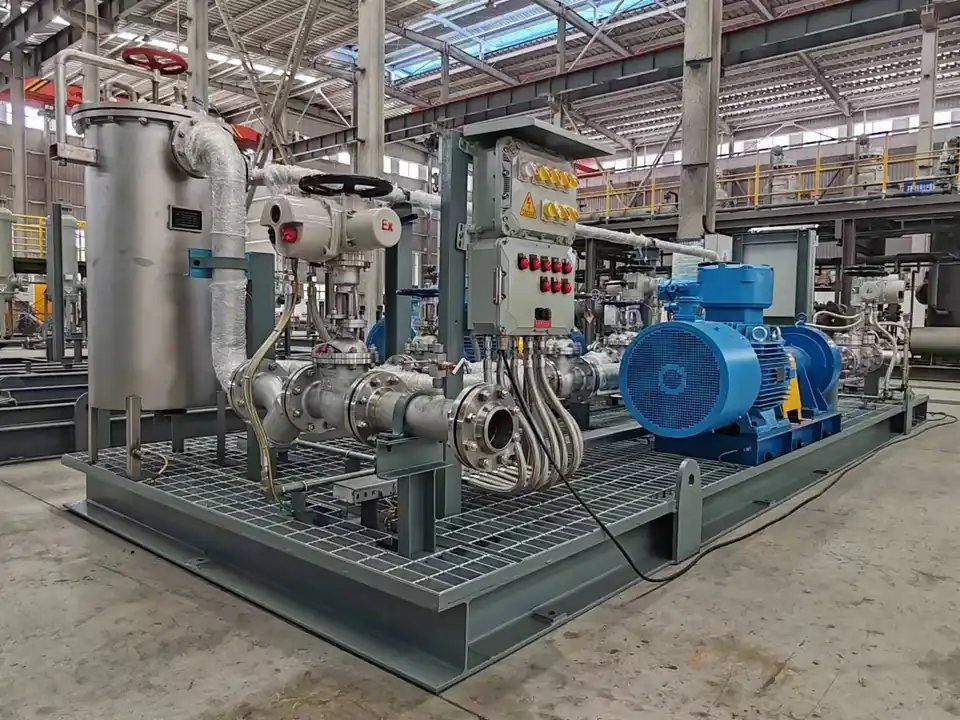

EHIK pump skid with pump set, piping, valves, control panel and shared base
03

From Individual Pumps to Complete Skids

Choose a pump head, a pump set with motor and base, or a complete skid—all from one supplier.

View Pumps & Skids

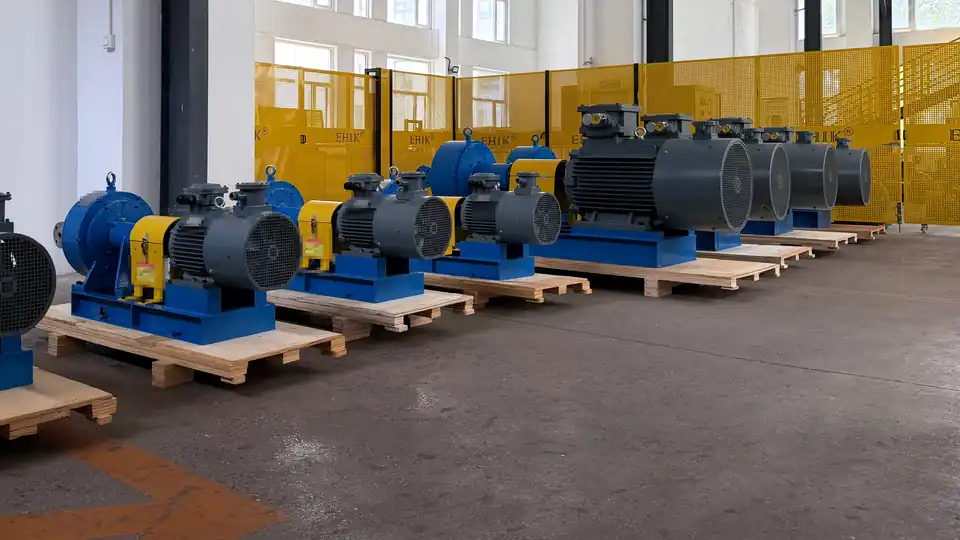

EHIK pump sets arranged in rows at the factory
04

Fast Response. Short Lead Times.

Pumps in stock and direct technical support help keep your project moving.

Pump heads
From 1 week
Standard pump sets — motor and base included
4 weeks
Ask About Availability & Lead Time

04 / Two ways to build your solution

From Individual Pumps
to Integrated Skids

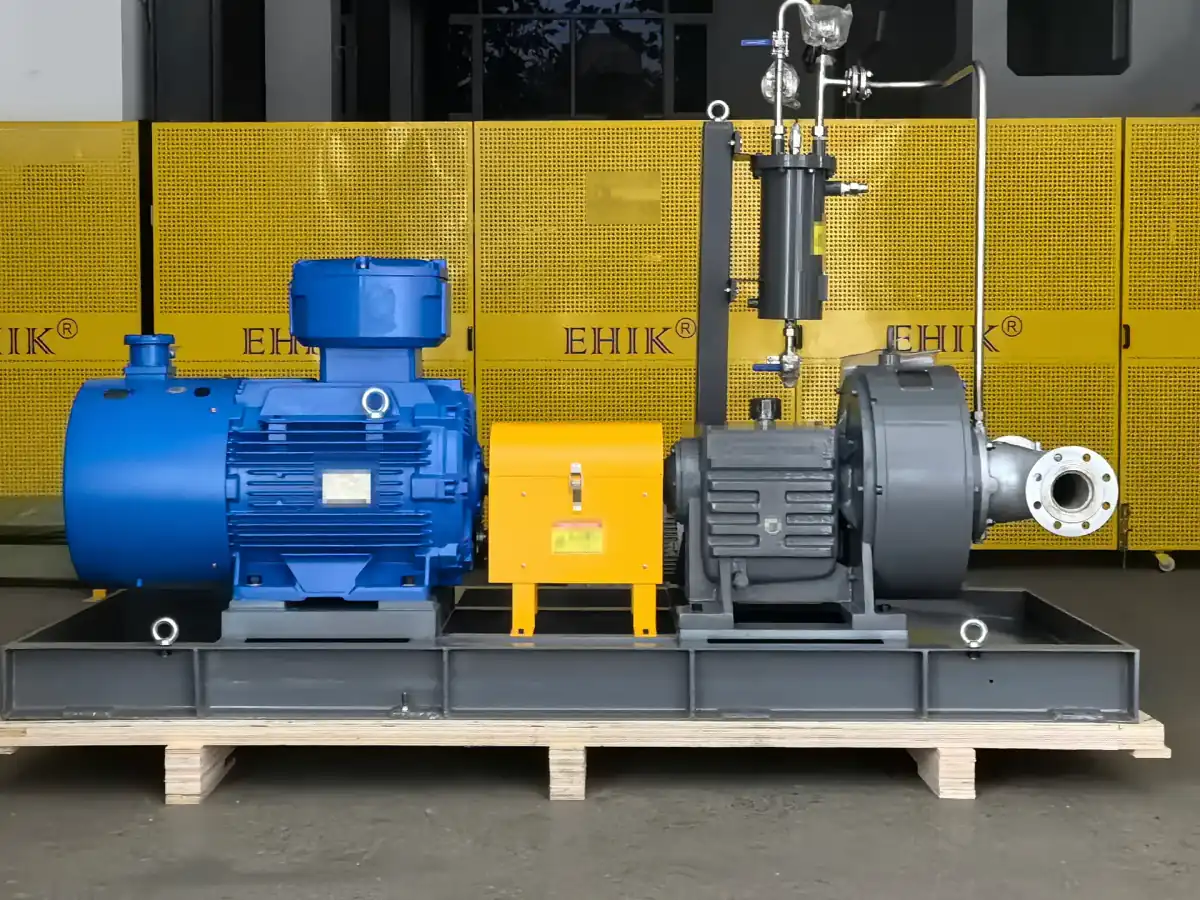

Complete EHIK pump set with pump, motor, yellow coupling guard and base

Pitot Tube Pumps & Pump Sets

Choose a pump or a motor-driven pump set for your high-pressure, low-flow process. We help you select the size, materials and configuration for your liquid and operating needs.

Explore Pitot Tube Pumps

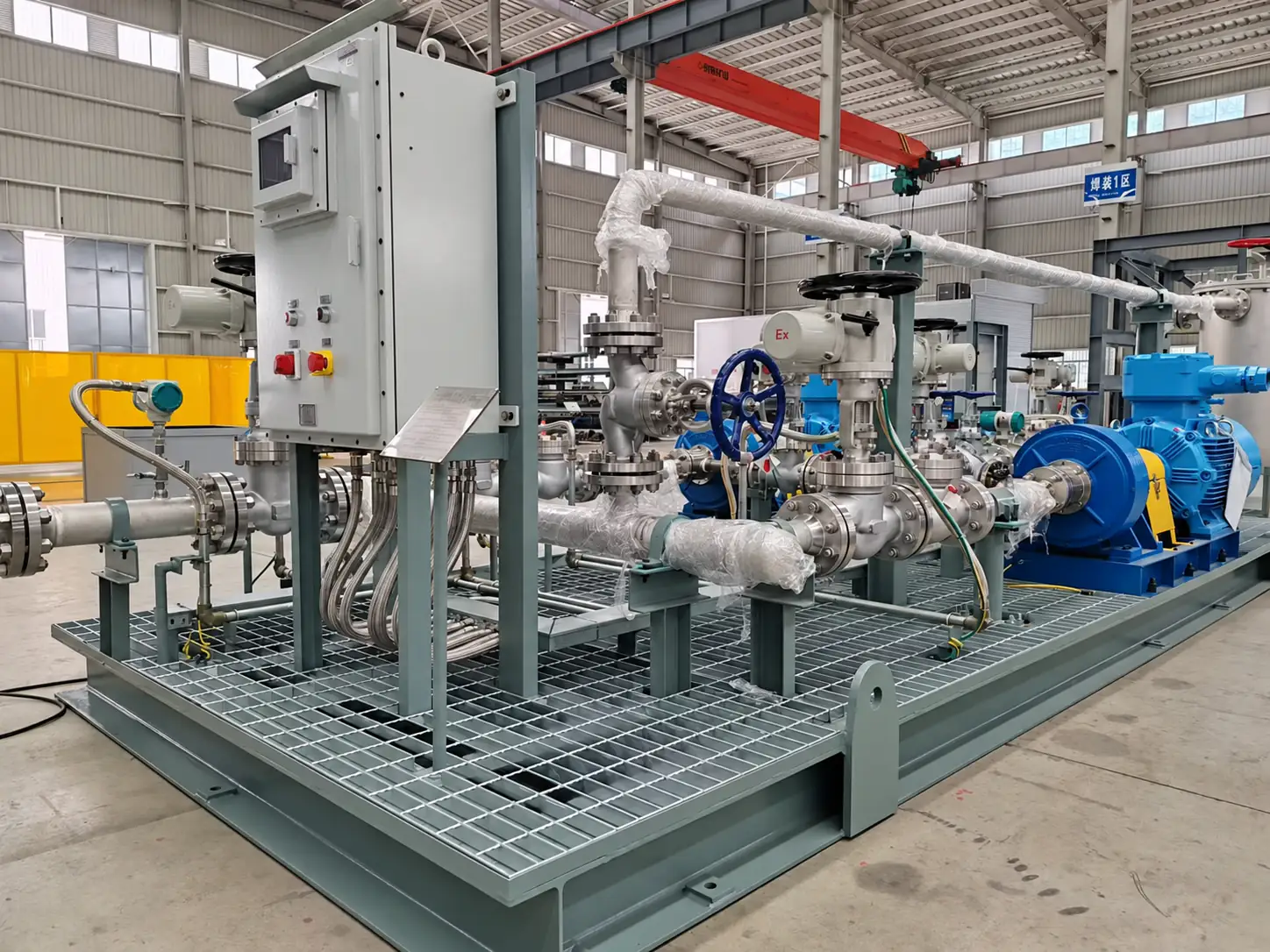

Complete EHIK integrated pump skid showing the control cabinet, piping, valves, instruments, pump set and shared base

Integrated Pump Skids

Bring pumps, motors, piping, valves, instruments and controls together on one skid. EHIK provides an integrated pumping package for your project.

Discuss a Pump Skid

Looking for a Roto-Jet Pump Alternative?

Share your operating conditions, fluid properties, required flow rate and pressure so we can help select a replacement pitot tube pump. Also include the existing pump model and a nameplate photo.

Discuss a Roto-Jet Replacement

05 / A different way to create pressure

How a Pitot Tube Pump
Builds Pressure

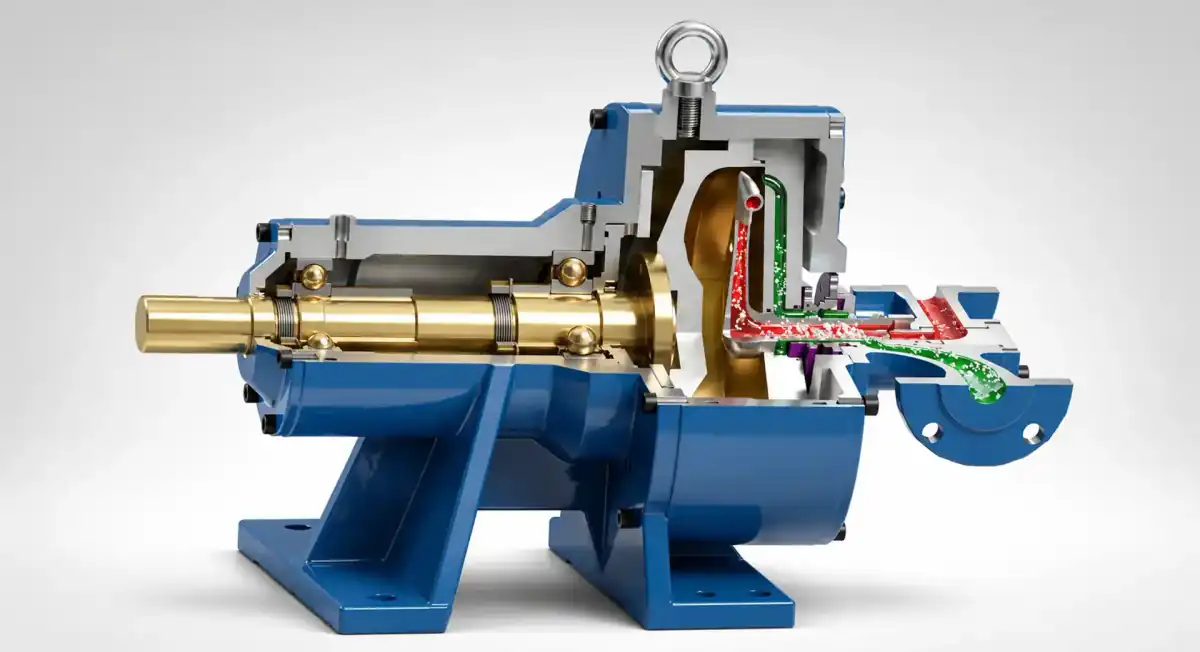

Cutaway illustration of a pitot tube pump showing the shaft, rotating chamber and stationary pickup tube
Rotating chamber. Stationary pickup tube.

  1. Liquid enters.

    The liquid flows into the rotating chamber.

  2. The chamber spins.

    Rotation accelerates the liquid and builds pressure.

  3. The pickup tube delivers.

    A stationary pickup tube collects the fast-moving liquid, converts its velocity into additional pressure and directs it to the outlet.

Continuous rotary pumping delivers steady, low-pulsation flow for process feed and high-pressure supply.

Explore the Pump Design

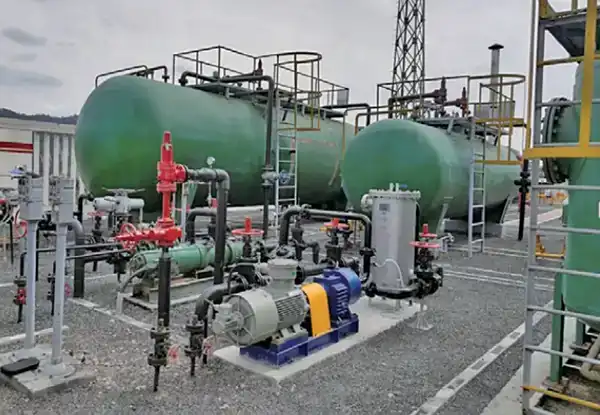

06 / Oil & Gas / Produced Water

Produced-Water Pumping for Demanding Conditions

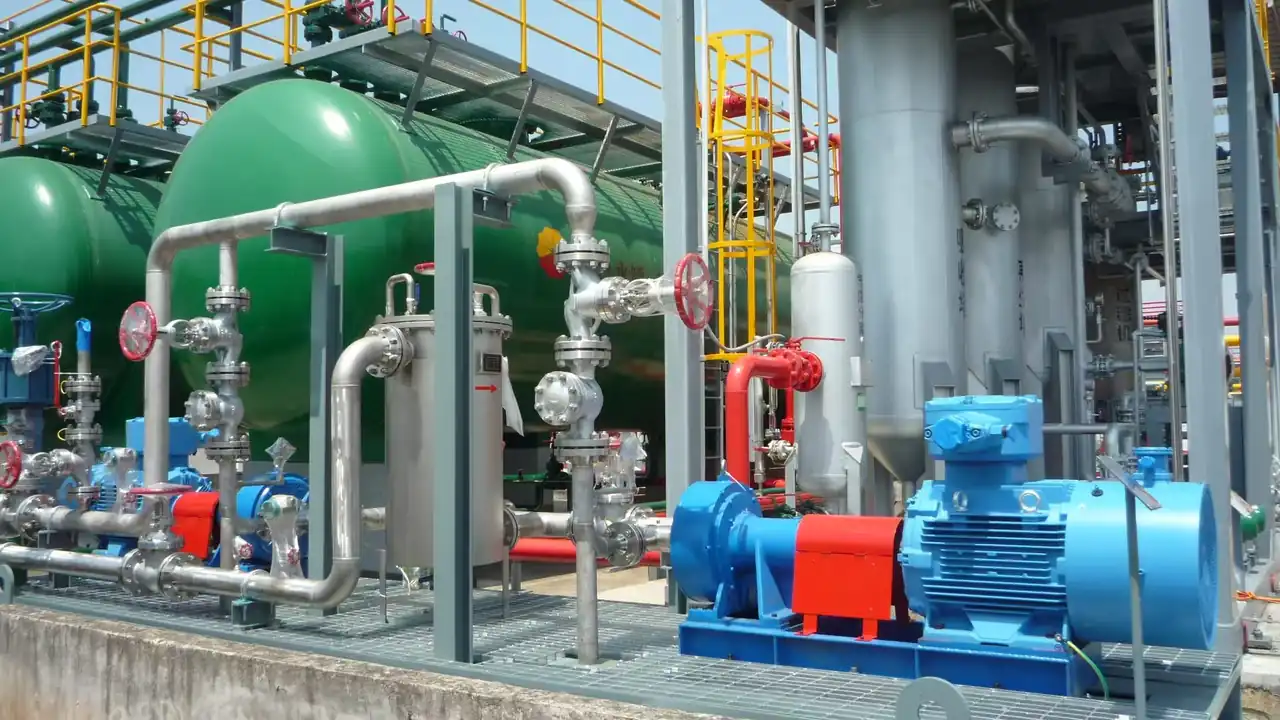

EHIK pitot tube pumps and piping at a gas-field water installation in Shunan, China.
EHIK pump installation in Shunan, China, 2024.

EHIK supplies pitot tube pumps and integrated skids for produced-water transfer and reinjection. We help you handle liquids containing gas, sand and corrosive components, reduce wear-related repairs, and maintain steady flow and pressure.

For abrasive liquids, EHIK’s wear-resistant options help parts last longer and extend the time between replacements.

Tell us your flow, pressure and liquid conditions.

Discuss Your Produced-Water Application

Multistage Pump Replacement at PetroChina · Shunan Gas Mine

Kong 6 Well, Zigong Operating Area · China · 2015

39.5% less electricity

For the same volume of gas-field water pumped.

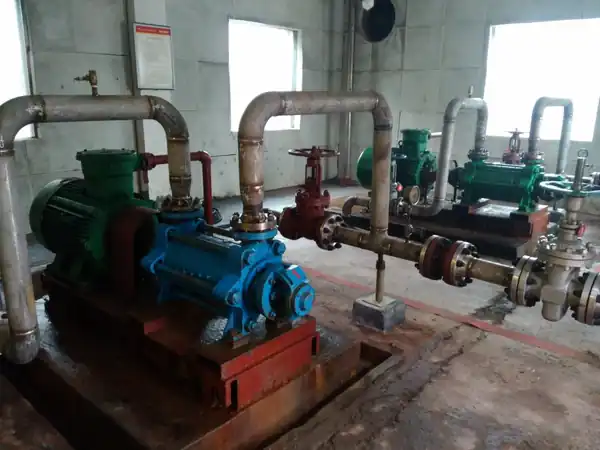

Multistage centrifugal pump at Kong 6 well station before the retrofit.
Before: Multistage centrifugal pump

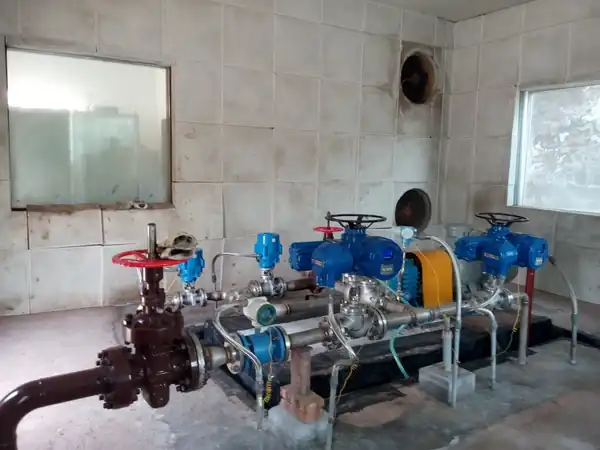

EHIK pitot tube pump and associated piping at Kong 6 well station after the 2015 retrofit.
After: EHIK pitot tube pump

EHIK replaced the multistage centrifugal pump at Kong 6 Well in the Zigong Operating Area of PetroChina’s Shunan Gas Mine. The motor rating was reduced from 95 kW to 45 kW—a 50 kW reduction. Site meter readings showed 39.5% lower electricity use for the same volume of gas-field water pumped, with stable operation and fewer repairs.

Illustrative annual electricity savings: approximately 343,700 kWh.

Find a Pumping Solution for Your Industry

From process feed to high-pressure water supply, find the application closest to yours.

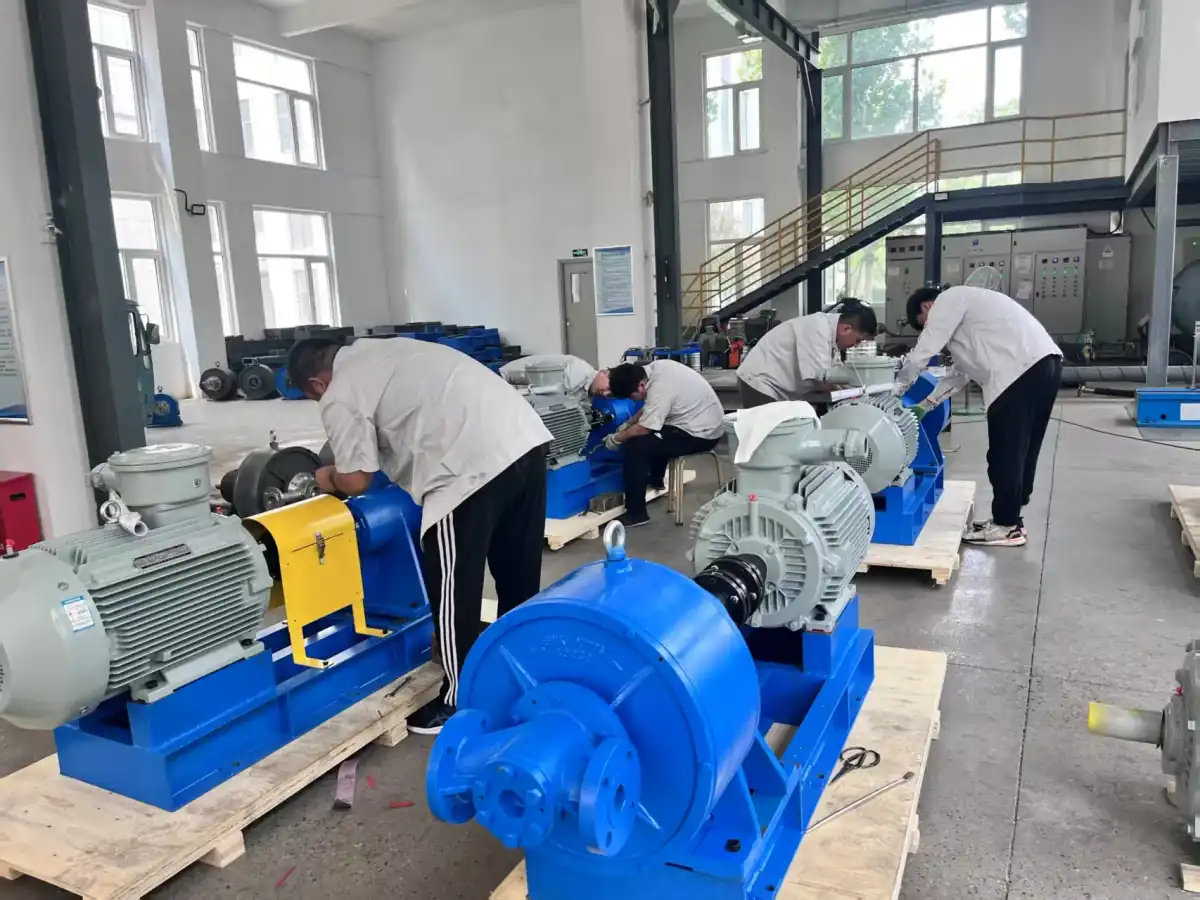

EHIK workshop team assembling pump sets with tools and multiple units

07 / Meet the manufacturer

Focused on Pitot Tube Pumps Since 2004

Pitot tube technology is our focus. We develop solutions for demanding high-pressure, low-flow applications.

We design and manufacture pitot tube pumps, assemble pump sets and integrate complete skids for industrial projects.

Meet EHIK

08 / Work Directly with EHIK

From Pump Selection to Ongoing Support

Work directly with EHIK for a new pump, a replacement, spare parts or service. Tell us what you need—we’ll help you take the next step.

  1. 01

    Share Your Operating Requirements

    Send us your operating conditions, fluid properties, required flow rate and pressure. For a pump replacement, also include the existing pump model and a nameplate photo.

  2. 02

    Get a Solution & Quote

    We help you choose a pump or skid, plan a replacement, or identify the parts and service you need—with a clear quotation and lead time.

  3. 03

    Supply & Ongoing Support

    From delivery and start-up to spare parts and repairs, EHIK supports your pump in operation. Our services include on-site commissioning, remote technical support and system modifications.

How We Support You

  • Pump Selection
  • Pump Replacement & System Modifications
  • Spare Parts
  • Repairs
  • On-Site Commissioning
  • Remote Support
Discuss Your Pumping Needs

09 / Start the conversation

Let’s Solve Your Pumping Problem

Tell us what you need to pump—or what is going wrong with your current pump. Our team will help you choose a solution and prepare a quote.

Email your operating conditions, fluid properties, required flow rate and pressure. For a replacement, also include the existing pump model and a nameplate photo.

Get Selection Help & a Quote
